Fully Automatic Waste Rubber Tire Tread Cutting Machine Tire Ring Cutting Machine tire Block Cutting Machine

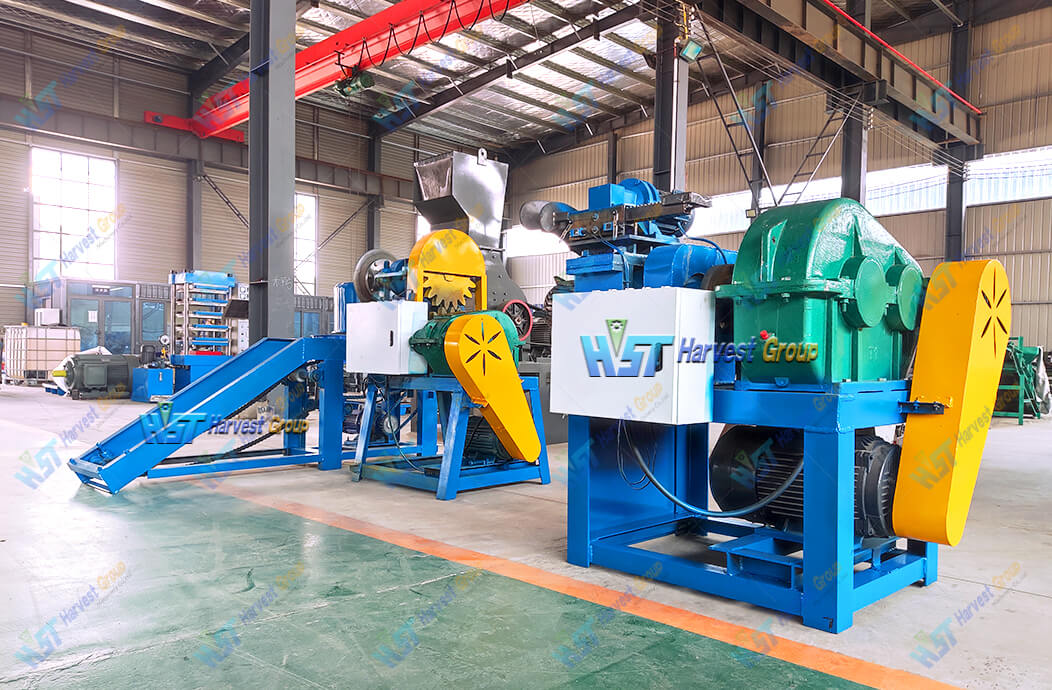

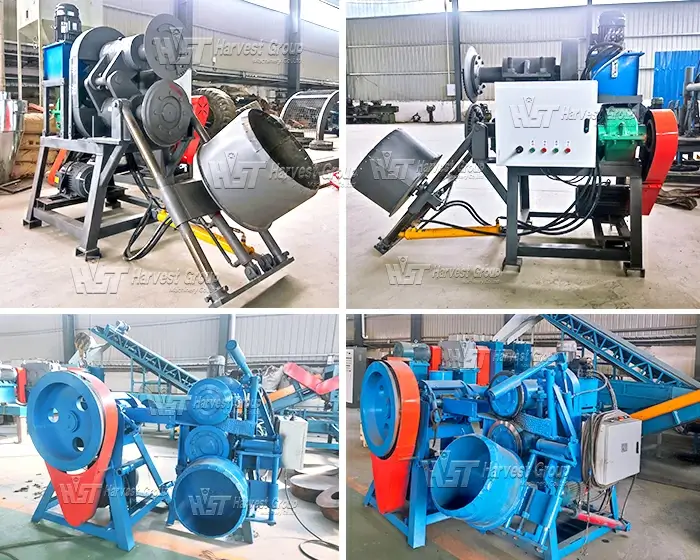

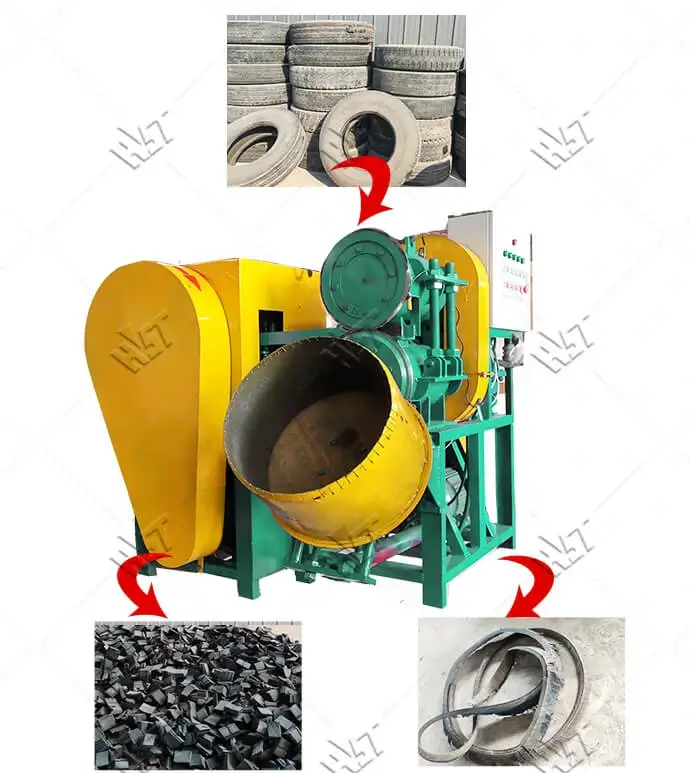

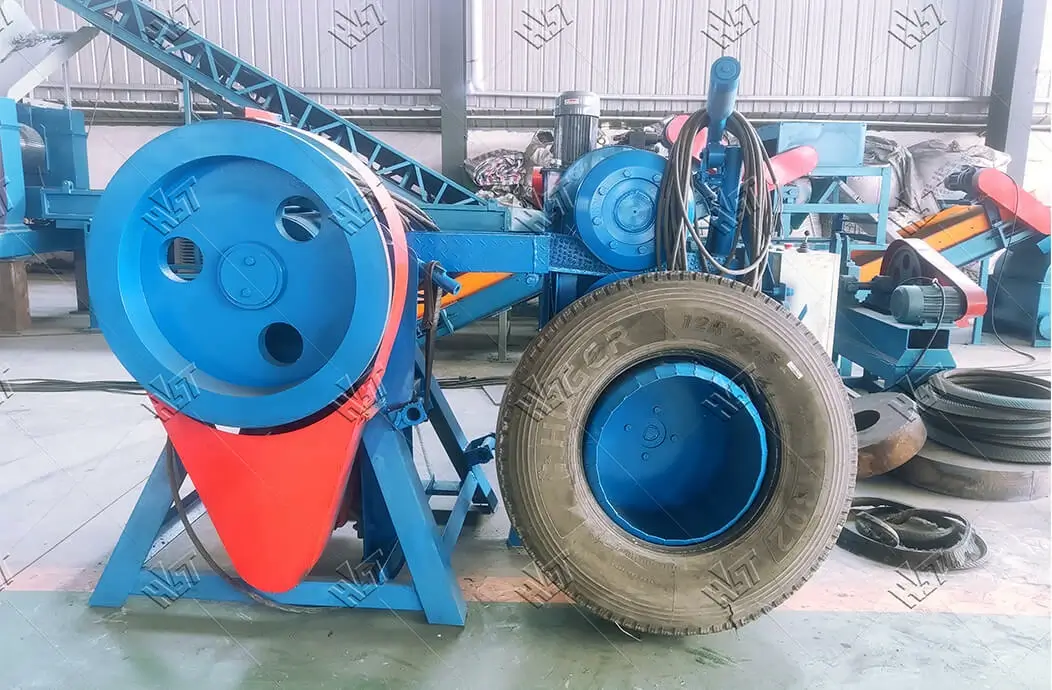

The automatic waste tire dicing equipment produced by HVST has changed the old-fashioned technology, and optimized the three-step dicing into one-step dicing.
It only needs to hang the waste tire on three sleeves with different sizes and operate the intelligent button to complete the dicing in one step, which is safe, efficient andenergy-saving, and the remaining two inner rings are convenient for subsequent processing.
First Step: Cut the Whole tire into two parts,

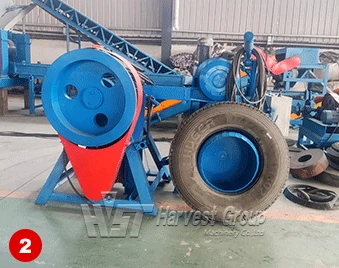

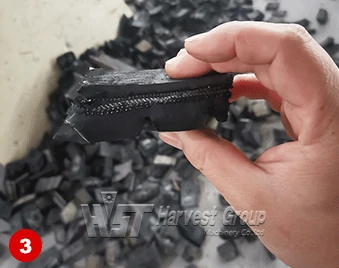

Second Step: cut the tires into 50-80mm rubber block automatic
Advantage: Auto operation, safety for worker, high capacity, easy to handle.
| Type of equipment | Technical parameter |
|
Slitting power（kW） |
7.5kw |
|
Block motor power（kw） |
22 |
|
Hydraulic power（kw） |
1.5 |
|
Tyre Specification（mm） |
14-18（20-22.5） |
|
Strip Width（mm） |
40-80 |
|
Block width（mm） |
30-60 |
|
Capacity（m/min） |
20-28 |
|
Blades Lifespan（h） |
1300-1500 |
|
Dimension（L×W×H）（mm） |
2180*1850*1500 |
|
Machine Weight （T） |
2.2 |

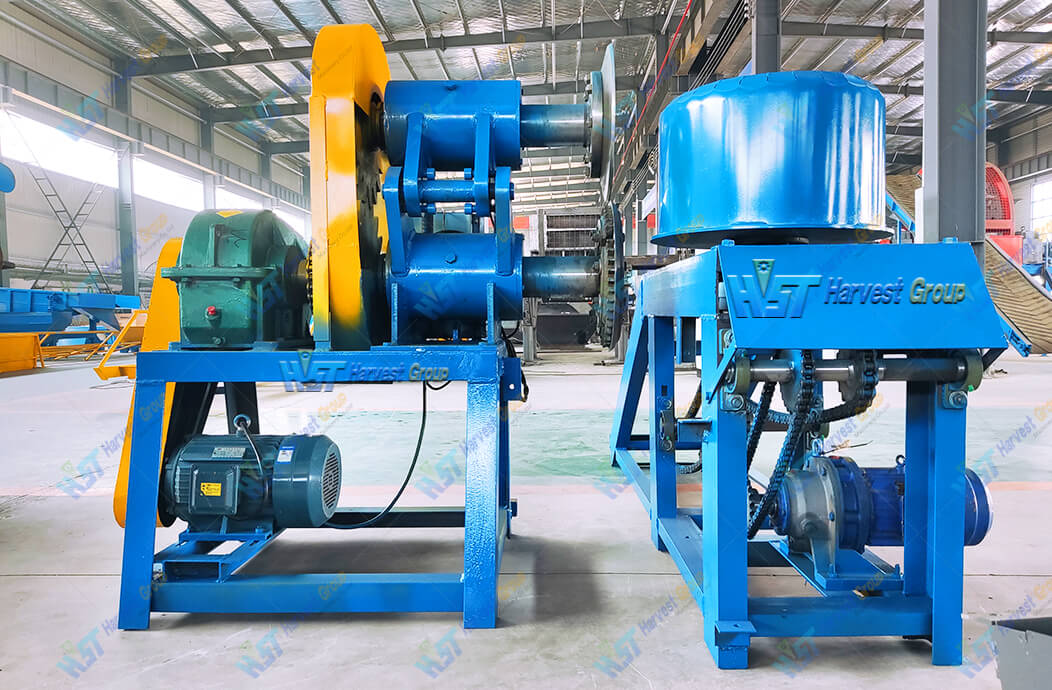

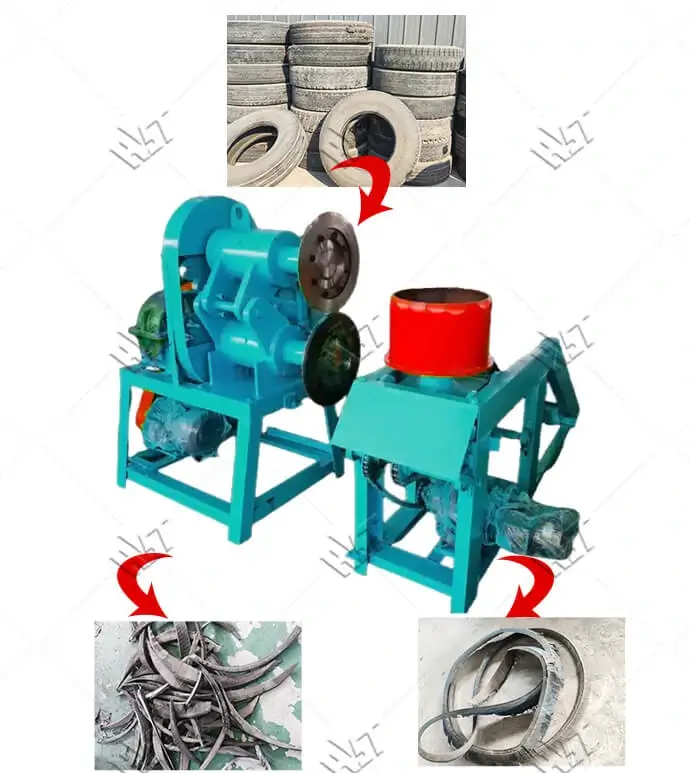

1. This Machine make use of two round special cutting tools to combination running cutting. The material of this machine’s knife disk is special alloy structural steel.
2.The blades can be sharpened again and again for longer time using.
3. It can cut the tire rings in less than 10 seconds,high speed and capacity
| Equipment model | QK1200 |
|
Power（Kw） |
7.5 |
|
Tire size（mm） |
Φ800-1200（mm） |
|
Strip width（mm） |
40-60（mm） |
|
Capacity（Pcs/h） |
60-120 |
|
Blades sharpened interval（h） |
3000（h） |
|
Blades sharpened (times) |
6-10 (times) |
|
Equipment weight（kg） |
900 |
