This cutting system can cut tire into 3-5cm tire blocks for further process into rubber powder or rubber granule in the next step.

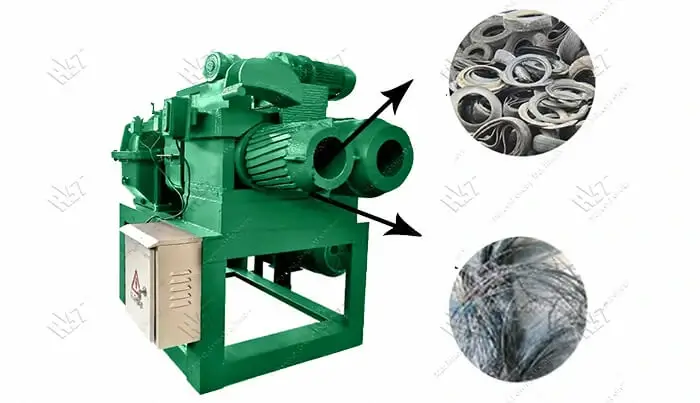

The main working part of this machine is two relative rotary roll shafts with the same speed. When tire circle cut into the middle of two rollers, it will be extruded by roll shaft, at the same time, be squeezed, Sheared and tear by the two relative rotary rollers. And finally complete the separation of the steel wire.
Easy operation: The equipment operation process is simple, and the cutting operation can be completed by buttons or control handles, etc
| Model | QK-1200 | QK-2000 | QK-3000 | QK-4000 |
|
Tire size |
≤1200mm |
≤2000mm |
≤3000mm |
≤4000mm |
|
Capacity |
20-30pcs/h |
6-8pcs/h |
4-6pcs/h |
2-4pcs/h |
|
Power |
5.5kw |
18.5kw |
18.5kw |
22kw |
Easy operation: The equipment operation process is simple, and the cutting operation can be completed by buttons or control handles, etc
| Model | QT-1200 | QT-2000 | QT-3000 | QT-4000 |
|
Tire size |
≤1200mm |
≤2000mm |
≤3000mm |
≤4000mm |
|
Capacity |
30-40pcs/h |
20-30pcs/h |
10-20pcs/h |
5-10pcs/h |
|
Power |
7.5kw |
18.5kw |
18.5kw |
18.5kw |
It can complete the cutting of a large number of tires in a short time, improving the efficiency of waste tire processing.
| Model | DK-1200 | DK-2000 | DK-3000 | DK-4000 |
|
Tire size |
≤1200mm |
≤2000mm |
≤3000mm |
≤4000mm |
|
Capacity |
30-40pcs/h |
20-30pcs/h |
10-20pcs/h |
5-10pcs/h |
|
Power |
22kw |
37kw |
37kw |
40kw |

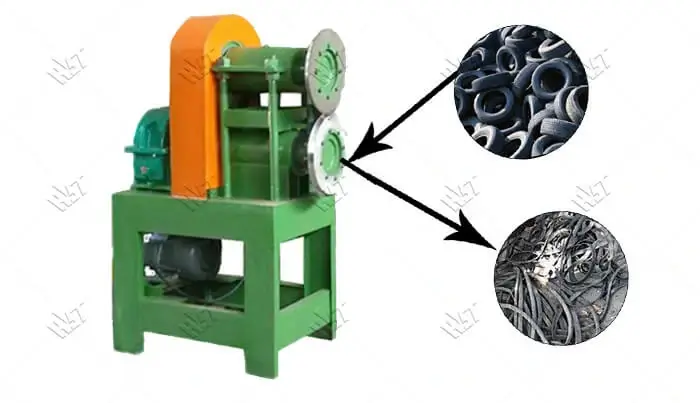

It can efficiently separate steel wire and rubber, and better maintain the physical properties of steel wire, which is convenient for subsequent recycling.
| Model | NS-1200 | NS-2000 | NS-3000 | NS-4000 |
|
Tire size |
≤1200mm |
≤2000mm |
≤3000mm |
≤4000mm |
|
Capacity |
60pcs/h |
50pcs/h |
40pcs/h |
30pcs/h |
|
Power |
18.5kw |
18.5kw |
30kw |
30kw |

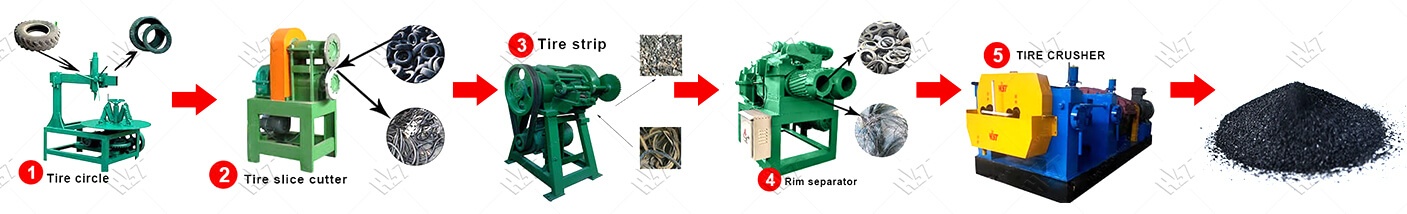

Flowchart of semi-automatic tire recycling machine:

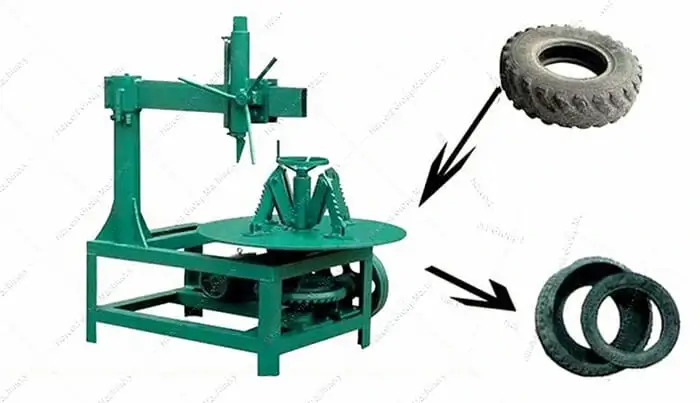

1. Tire circular cutter cuts tire bead from the whole tire.
2. Tire strip cutter cuts whole tires into strips except tire bead.

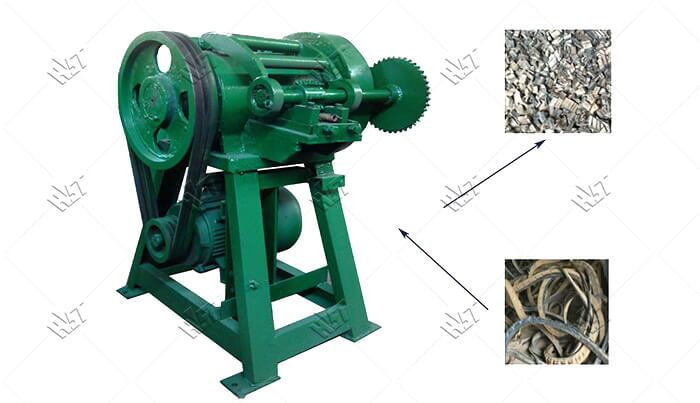

3. Tire block cutter cuts tire strips into 3-8 rubber blocks.
4.Rubber crusher crush rubber blocks to rubber granules and powder 5-40mesh.
