Flowchart of fully tire recycling machine:
1. tire de-beader: draw out the steel wires from the tire bead
2. tire cutter: to cut large diameter tires into small pieces, then put into tire shredder. it is optional, based on the tire size.

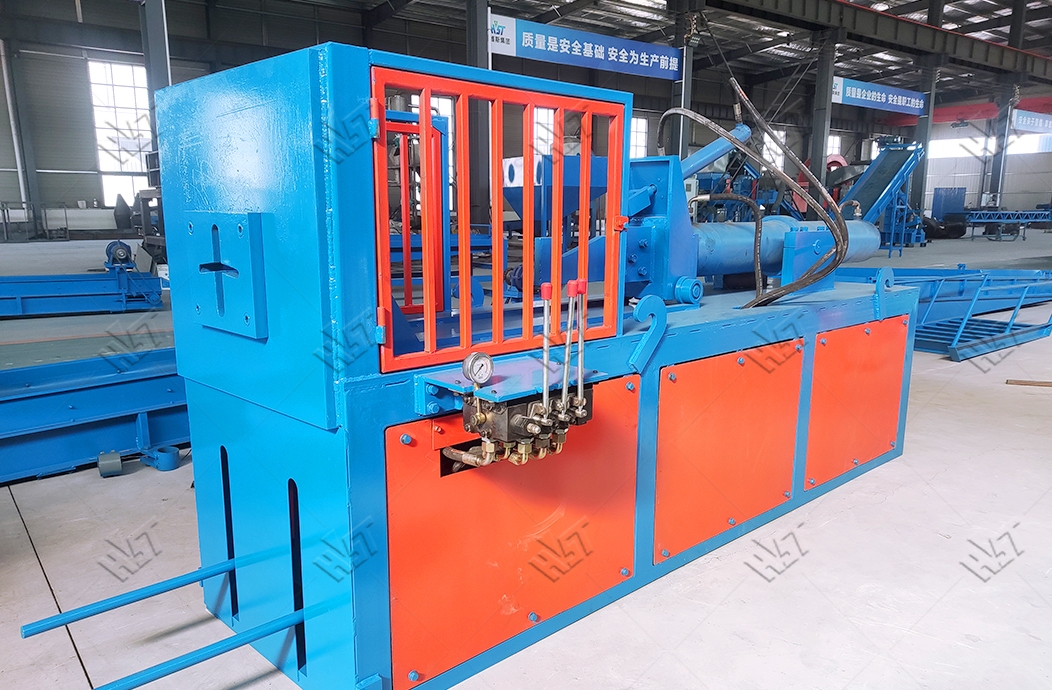

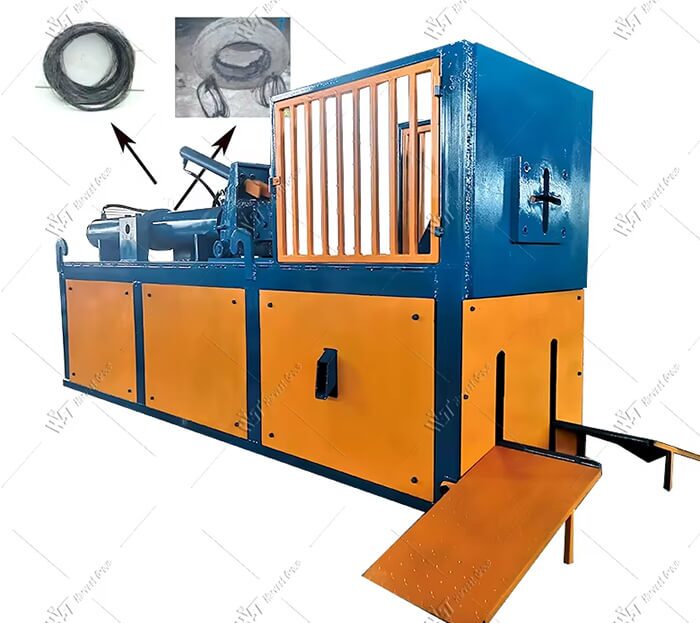

draw out steel wire from tire circle
Draw out the steel wires from the tire bead. Remove the wires from tire bead. Especially suitable for OTR tires, Big truck tires. The diameter of wires inside the tire bead is big. It is better and helpful to remove it from tire mouth.
| Model No. | Single-1200 | Double-TD1200 |
|
Feed size of tire(mm) |
≦φ1200 |
≦φ1200 |
|
Capacity(tires/h) |
40 |
80 |
|
Power(KW) |
7.5 |
18.5 |
|
Overall dimensions(m |
4.1*1.3*1.75m |
4.5*1.5*1.8m |
|
Equipment weight(T) |
2.8 |
3.5 |

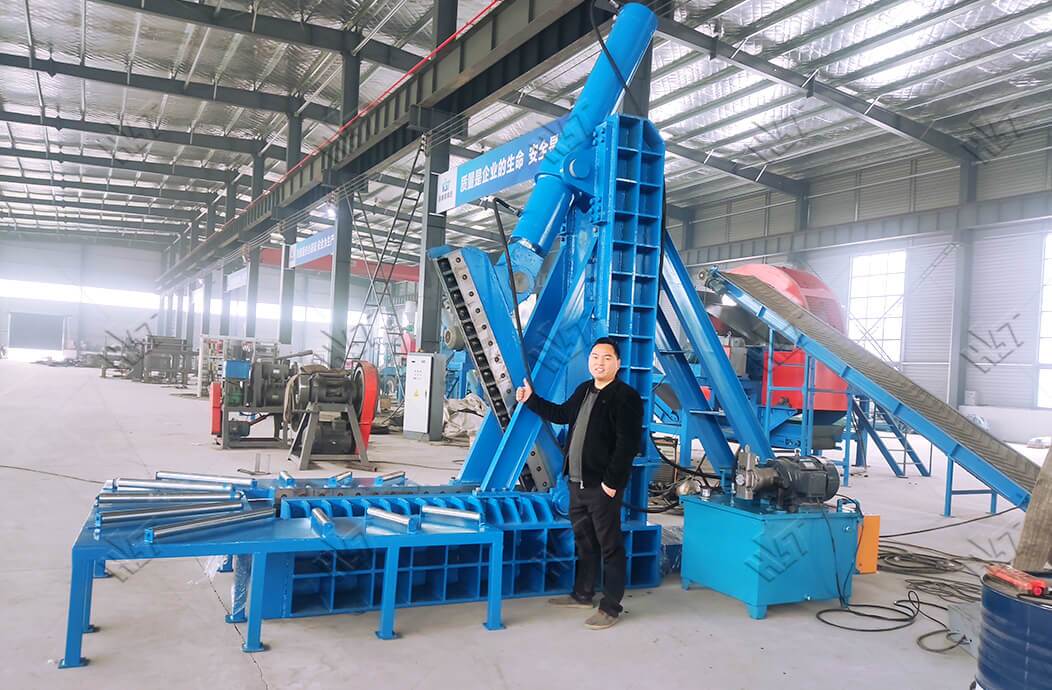

cut whole tire into 3 pieces or smaller pieces
HVST OTR Tire cutters are designed by approval American Technologies specially to cut giant OTR tires. Siemens Motor drive hydraulic system and cylinder,place the tire betwork to lock arm, fasten two blades rotating between tire and shear cylinders work to move, two blades rotating blades forming shear, achieve the effect of shear.
| Name | Model | Motor | Dimensions mm | Weight kg |
|
OTR tire cutting machine
|
TC-4000 |
22kw |
7200*4600*4400 |
32000kg |
|
TC-2800 |
22 kw |
5000*3000*3800 |
15000 kg |
|
|
TC-2000 |
18.5 kw |
3700*1500*3500 |
7500 kg |
|
|
Normal truck tire cutting machine |
TC-1200 |
7.5 kw |
1850*700*1750 |
2500 kg |

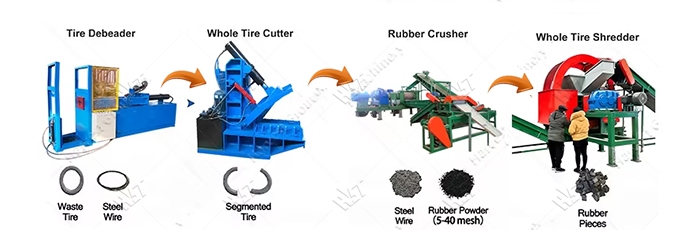

Flowchart of fully tire recycling machine:
1. tire de-beader: to draw out the steel wires fromtire bead
2. tire cutter: to cut large dia tire into small pieces, then put into tire shredder. it is optional, based on the tire size.
3. tire shredder: to make rubber block from whole tire
4. rubber crusher: make rubber powder and granule in 5-40mesh.
