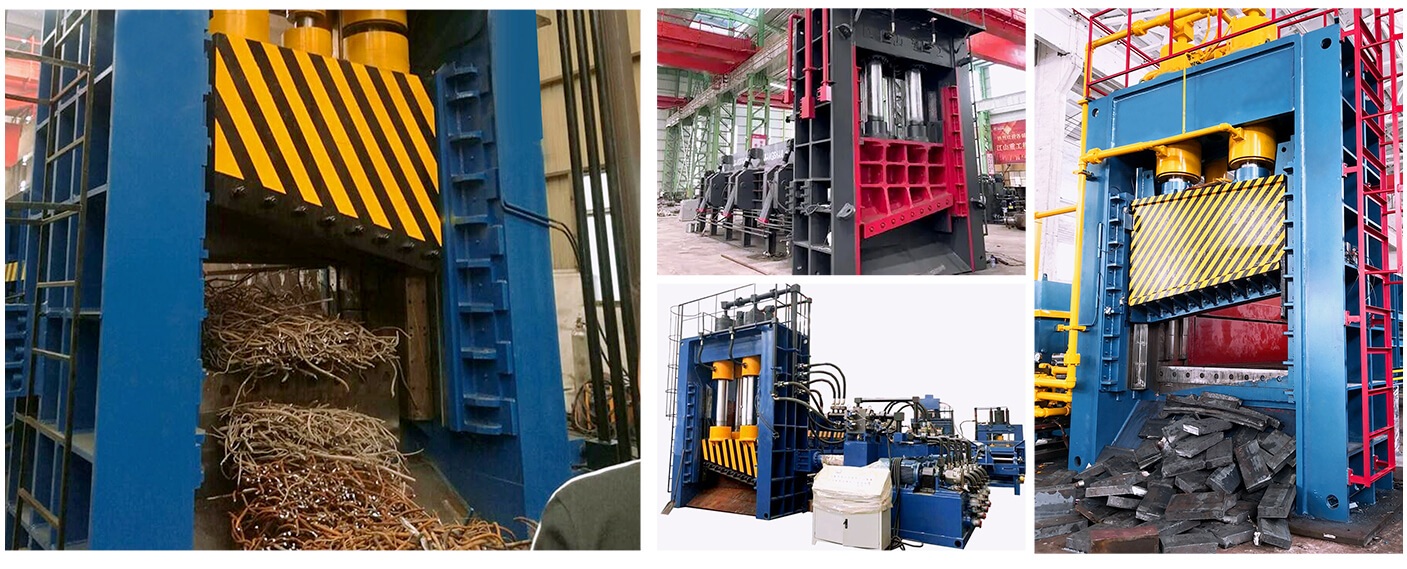

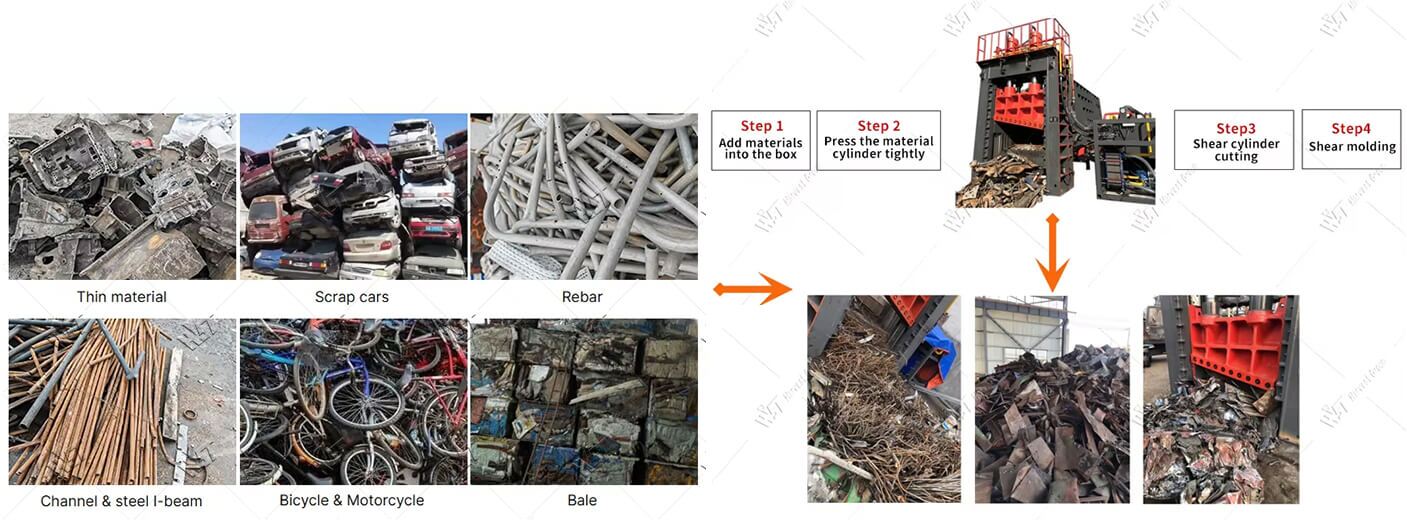

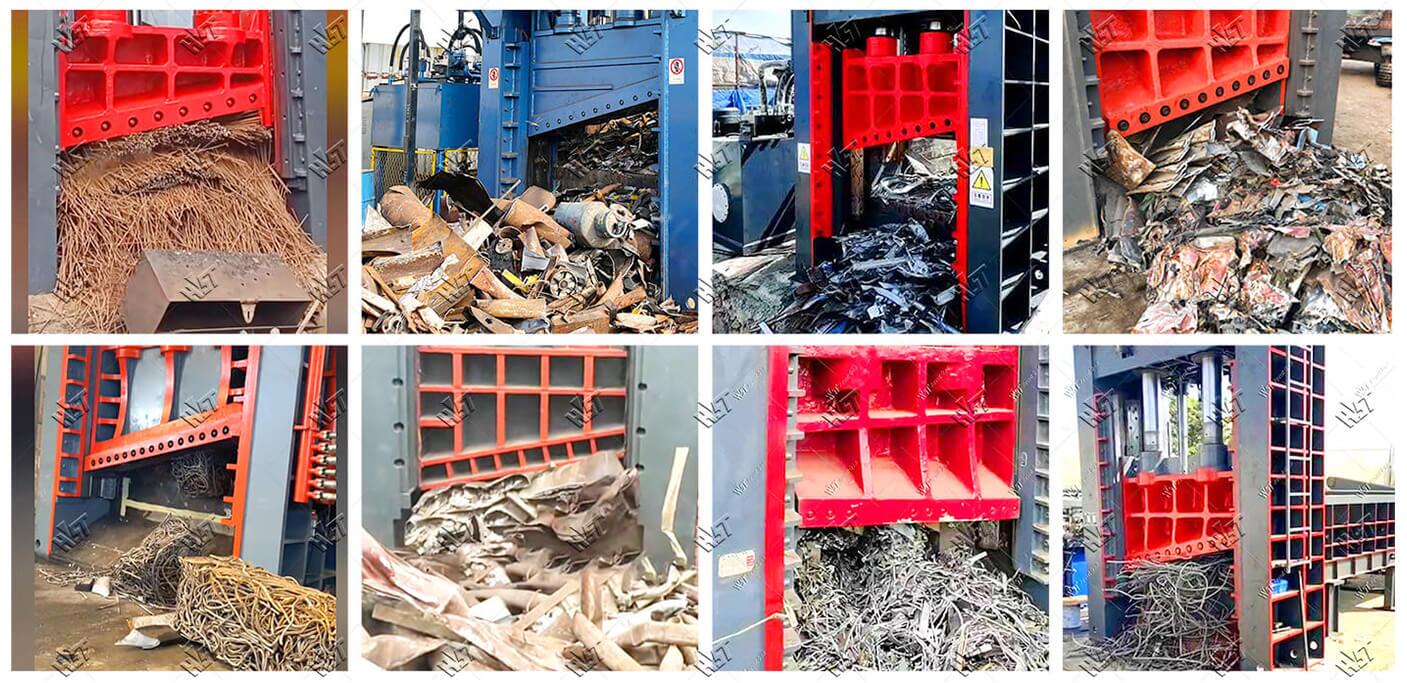

Heavy Metal Scrap Gantry Shear is a kind of applicable to heavy scrap steel shear processing equipment, used for thin steel, steel bar, steel plate, nickel plate, steel, round steel, steel pipe, copper scrap, scrap steel, scrap metal, light metal structure,stainless steel, metal press block, auto body, aluminum alloy, copper, iron, steel all kinds of scrap metal, such as cold cut,processed into qualified charge.

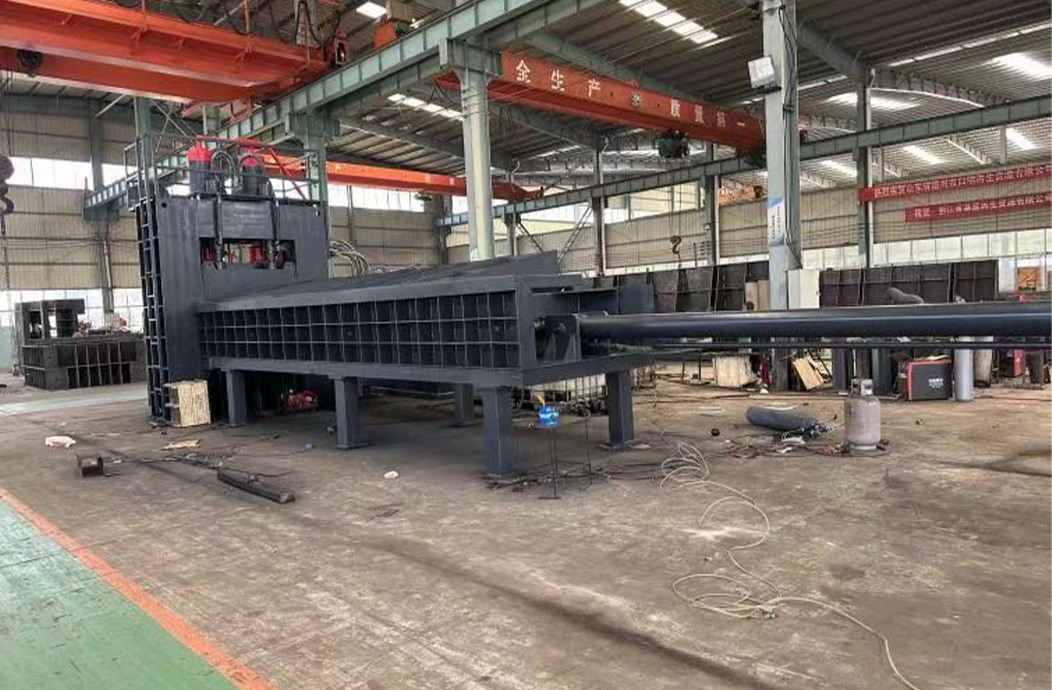

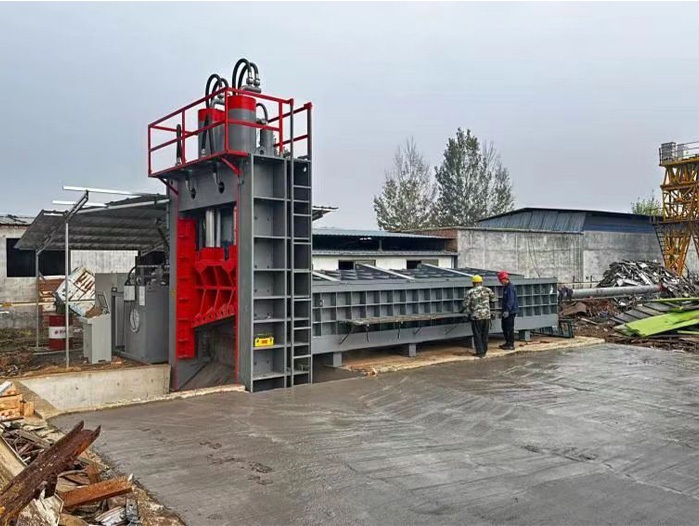

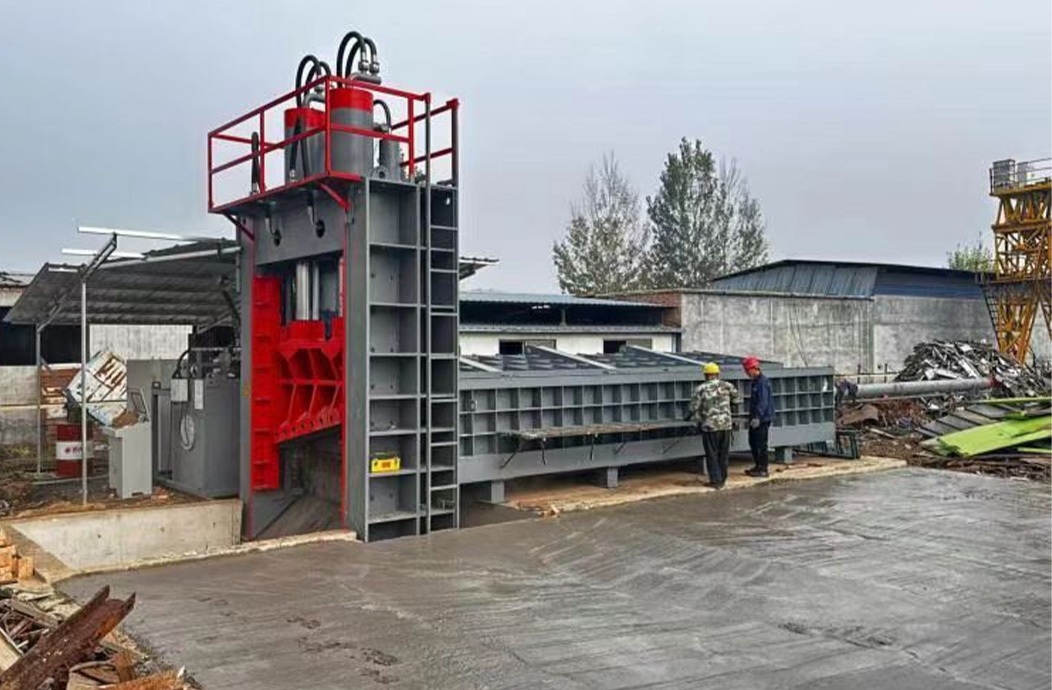

Through the automatic feeding box, material grab to the feeding box,the waste by the conveyor belt automatically sent to the edge, through the speed regulating motor can adjust the feeding speed.Side extrusion cylinders are installed on both sides of the tank.If large waste, such as scrapped cars, can not be cut through the cutting edge of the gantry shear, it can be reduced by squeezing the side of the cylinder, and then sent to the cutting edge by the conveyor.Hydraulic gantry shears, scrap metal shears Hydraulic gantry shears are equipment used for cold shearing of various metals.They are mainly composed of a frame, a hydraulic cylinder, a hydraulic power system, an electrical system and other components.

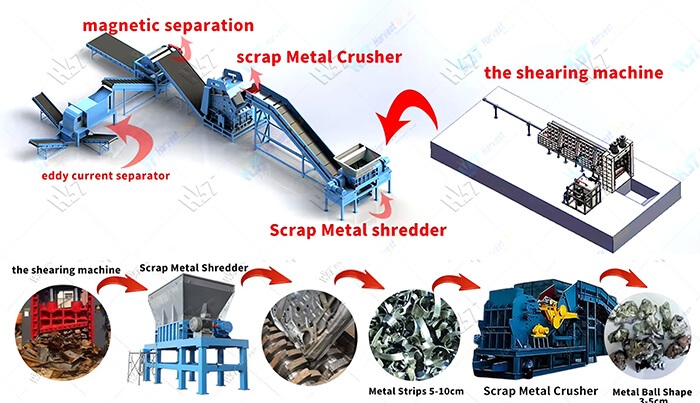

We have different metal crusher systems to meet different market needs.Type1:
1. the shearing machine
2. Doubel shaft shredder

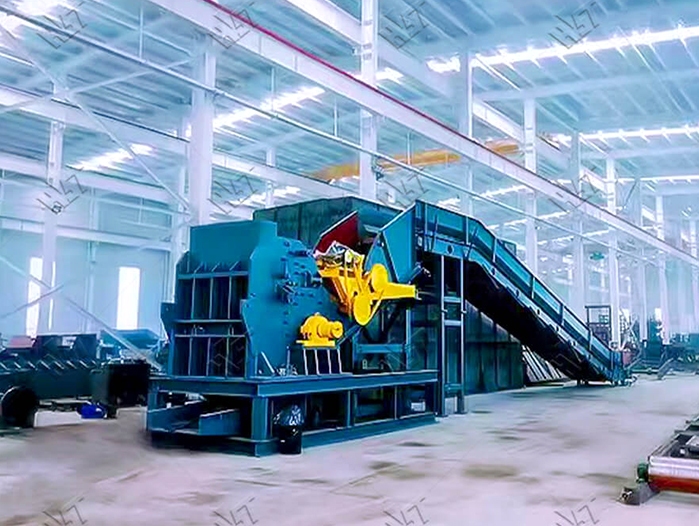

3. Metal crusher
4.Central dust removal system
5. Magetic separator
6. Eddy current sorter
7. Output conveyour
Type2:Scrap steel shearing and crushing process
Type3:Scrap steel shearing and shredding process Please leave a message for your requirements, the machine can be customized for you.
This equipment is mainly used for cutting all kinds of low-carbon light-weight production and domestic scrap steel, Scrap automobile shells, Light metal structures made of steel.Materials are cut into ideal sizes for Furnace feeding in steel mill. Non-ferrous metal smelting industry .it is an Ideal equipment for the precision casting industry and raw material manufacturers.
|
Max.cutting force(ton) |
Max.cutting width(mm) |
Shear efficiency(t/min) |
Motor Power(kw) |
|
315 |
≤1200 |
3-5 |
2*30 |
|
400 |
≤1400 |
3-5 |
2*37 |
|
400 |
≤1500 |
3-5 |
2*37 |
|
500 |
≤1500 |
3-5 |
2*37 |
|
500 |
≤1600 |
3-5 |
2*37 |
|
630 |
≤1600 |
3-5 |
3*45 |
|
630 |
≤1800 |
3-5 |
3*45 |
|
800 |
≤1800 |
3-5 |
4*45 |
|
800 |
≤2000 |
3-5 |
4*45 |
|
1000 |
≤2000 |
3-5 |
5*45 |
|
1000 |
≤2500 |
3-5 |
5*45 |
|
1000 |
≤3000 |
3-5 |
6*45 |
|
1250 |
≤2200 |
3-5 |
6*45 |
|
1250 |
≤2500 |
3-5 |
6*45 |
|
1250 |
≤3000 |
3-5 |
7*45 |
|
1500 |
≤2200 |
3-5 |
5*90 |
|
1500 |
≤2500 |
3-5 |
5*90 |
|
1500 |
≤3000 |
3-5 |
5*90 |
|
2000 |
≤2500 |
3-5 |
6*90 |
|
2000 |
≤3000 |
3-5 |
6*90 |
