XKP Tire Crusher Machine Capacity: 200-10000kg/h ,granules 2-4mm,powder 10-120mesh. fiber,steel.
Our Hot Selling Equipment
Top Waste Tire Recycling Machine Manufacturer
In China With Customized Solution

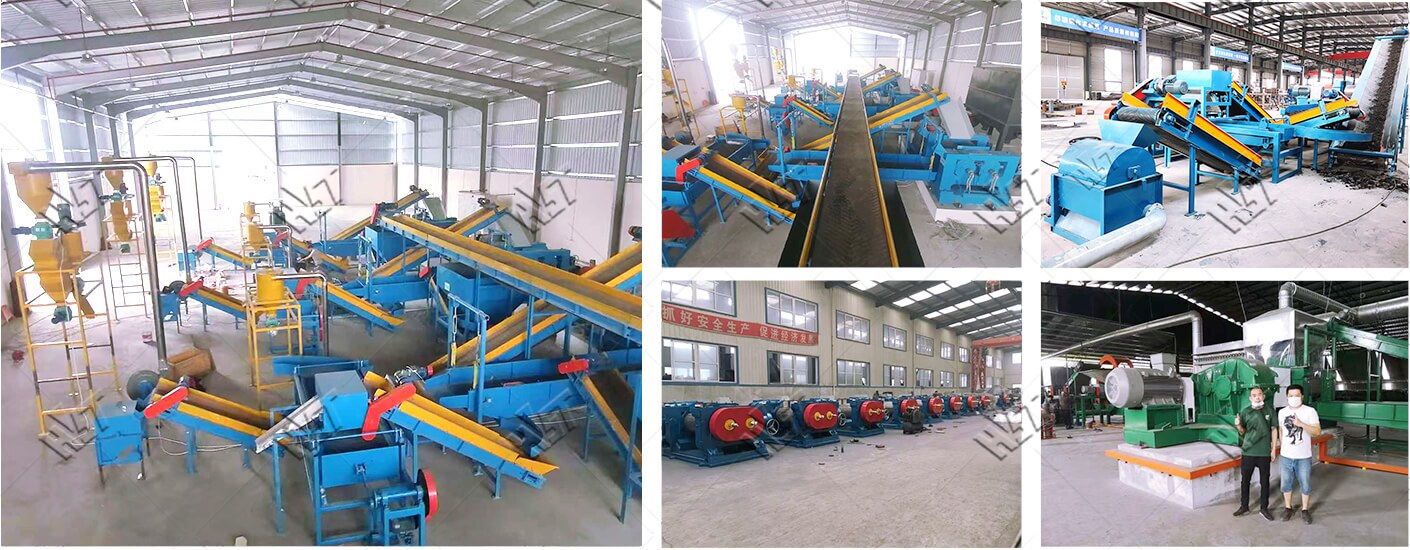

We provide complete turn-key tire recycling solution from R&D, production until successfully installation at customer’s worksite. - designed to turn waste tyres into valuable products with maximum efficiency. From high-performance shredders to versatile and durable solutions, HVST offers a wide range of customization equipment to meet your tyre recycling needs and ensure profitability in your operations.

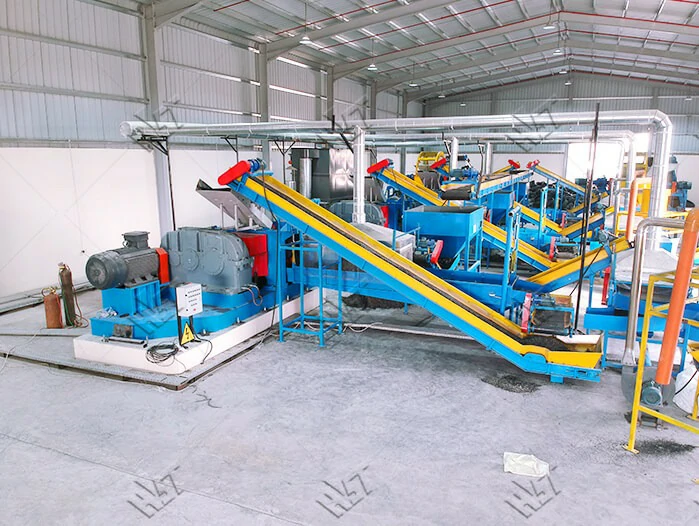

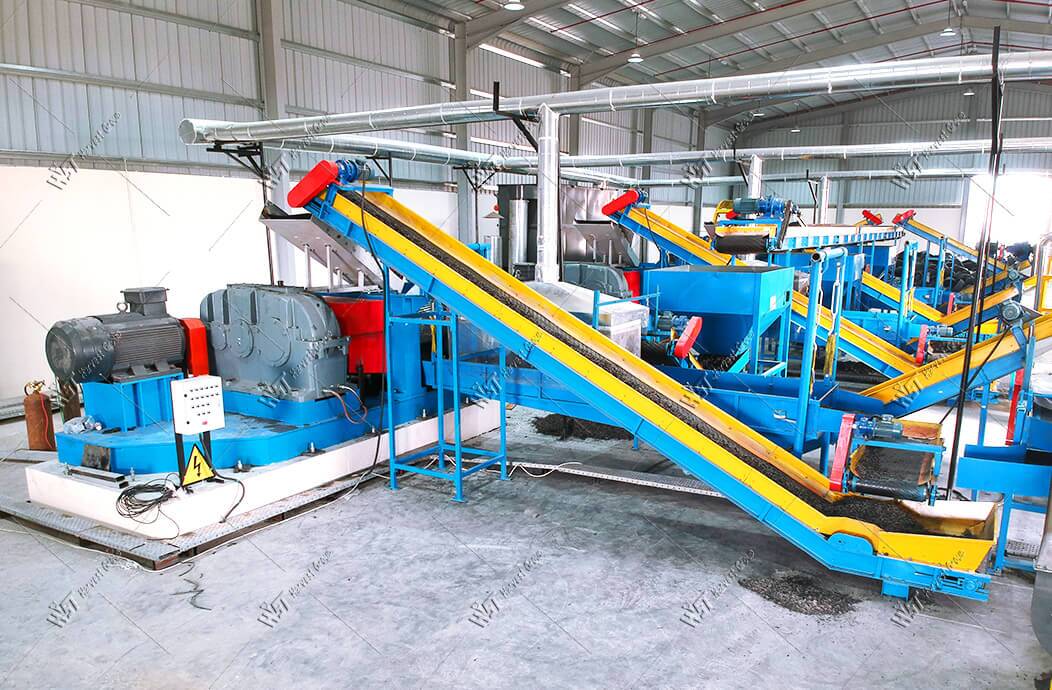

XKP tyre granulator machine is used to recycle waste tires into rubber crumbs or powder through the vibrating screen as you need. The tire chips will be fed into the rubber crusher by feeding conveyor, and get grinded into target sized rubber particles. The bigger sized rubber particles will be screened out by the two vibrating screens, and returned to the rubber crusher again for further grinding until it gets to ideal sizes.

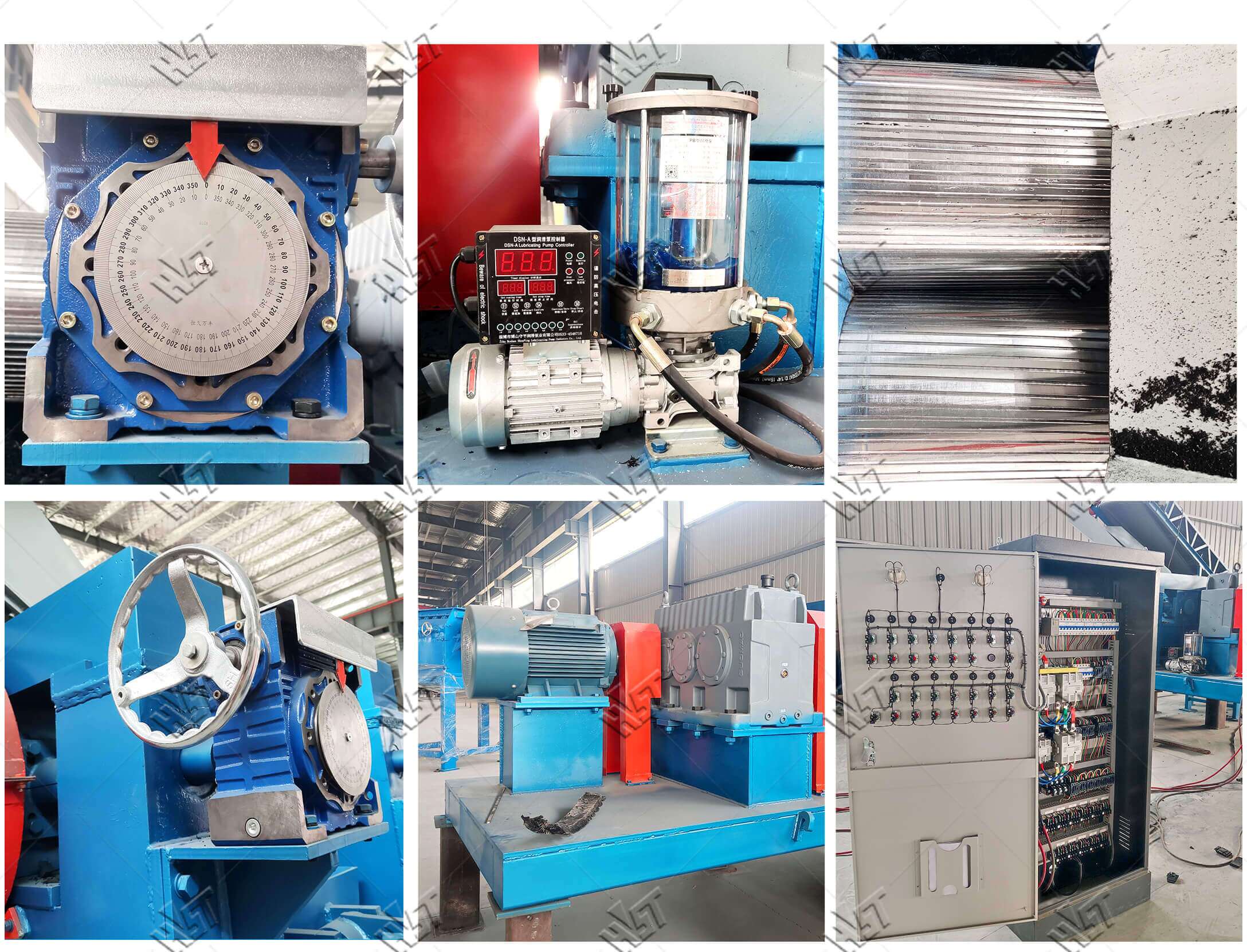

High-Quality and Durable rollers: The rollers are made of high-quality steel with a wear-resistant hard alloy overlay on the surface. They are hard and wear-resistant, and have good welding performance, which facilitates repair welding.
Excellent Temperature Control: The rollers adopt a composite process structure. There are cooling water tanks 50mm below the rollersurface, or the rollers are hollow inside, allowing the passage of saturated steam or cooling water. This effectively regulates the roller surface temperature, prevents rubber powder from carbonizing, and eliminates fire hazards.
High Degree of Automation: It adopts automatic adjustment of roller gap and auto-grease pump, making operation simple and convenient.
Convenient Adjustment: Use handwheels to adjust the roller gap, facilitating easy operation.
Easy Maintenance: The overall structure of the equipment adopts a modular design, facilitating easy repair and maintenance.
High-Quality Products: Both rollers are grooved rollers, and the inner cooling system ensures uniform roller surface temperature, which produces rubber powder with low temperature and high quality.

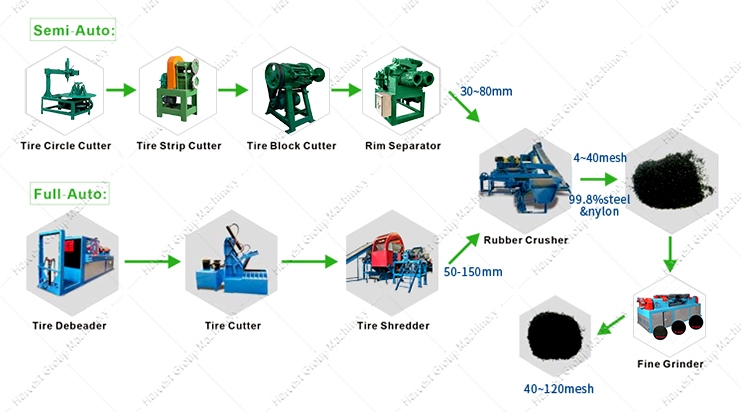

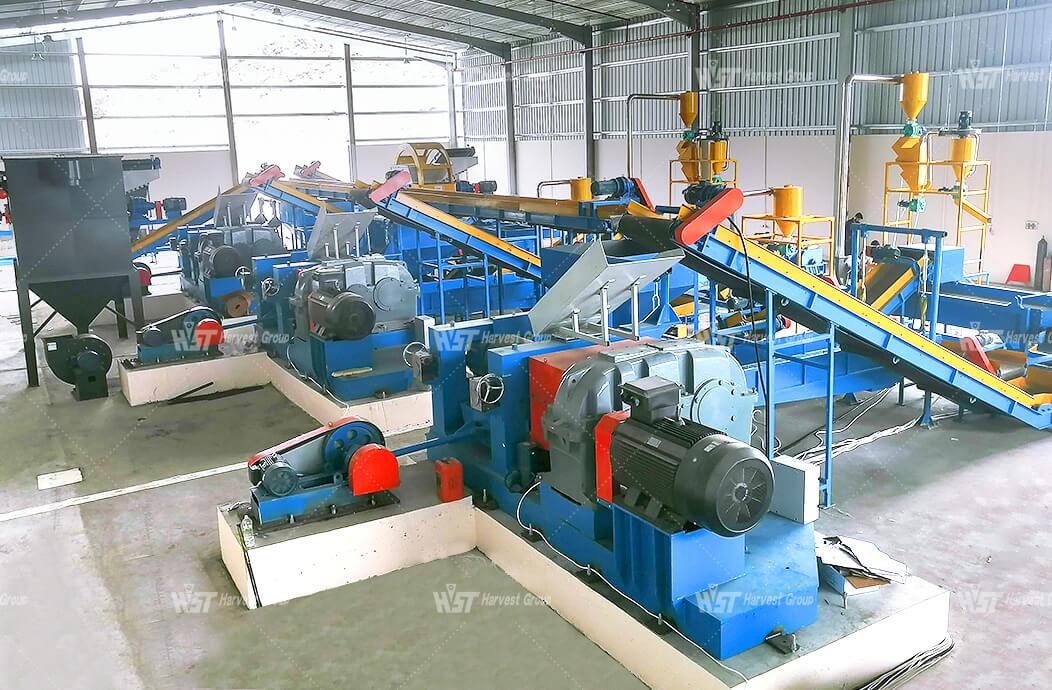

Flow chart of semi automatic xkp tire recycling line

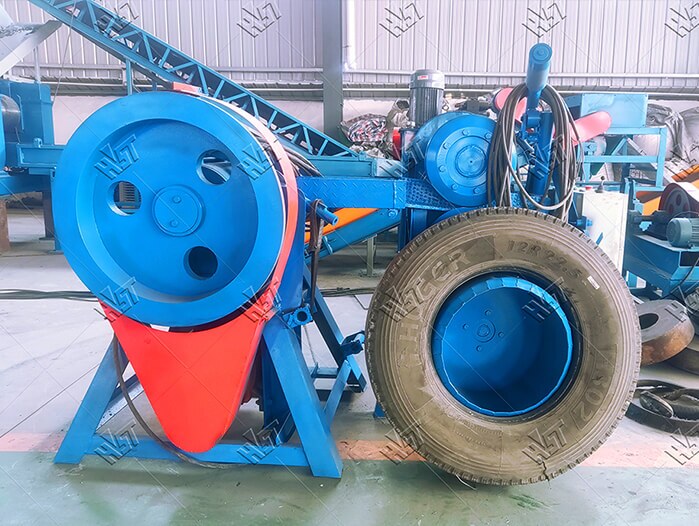

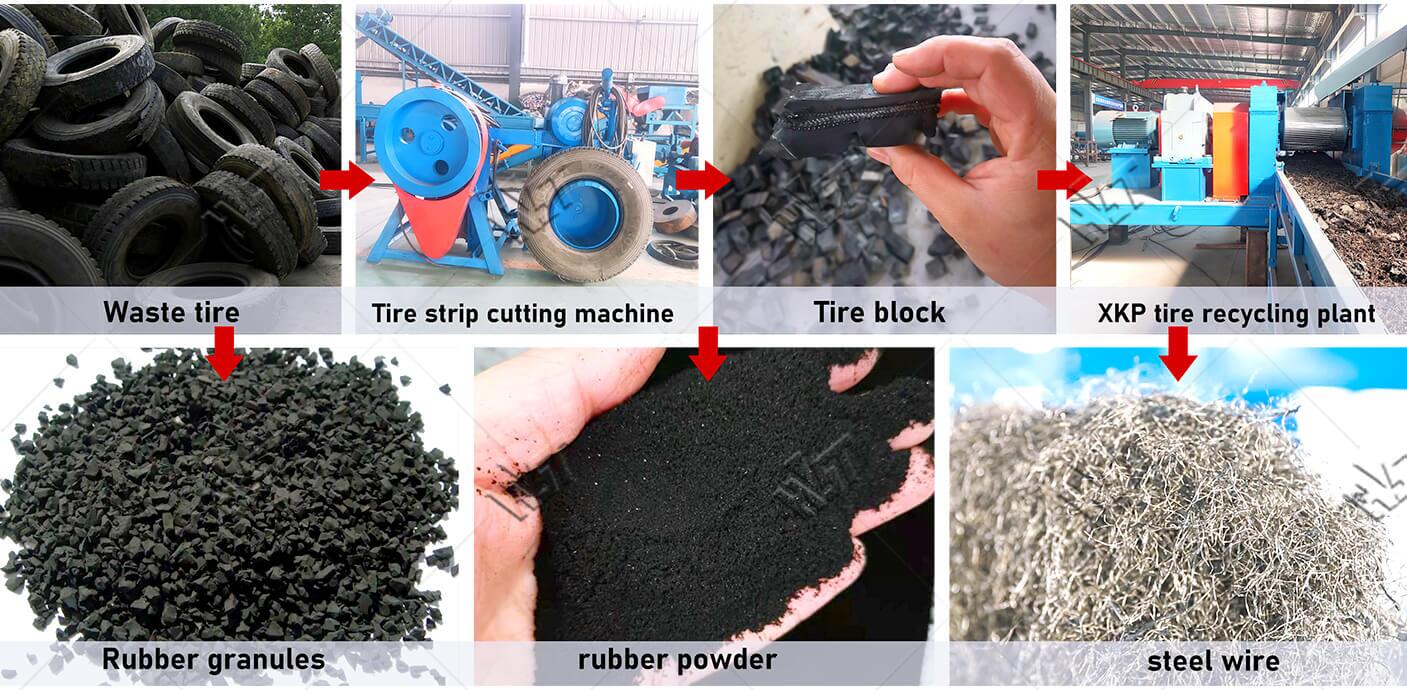

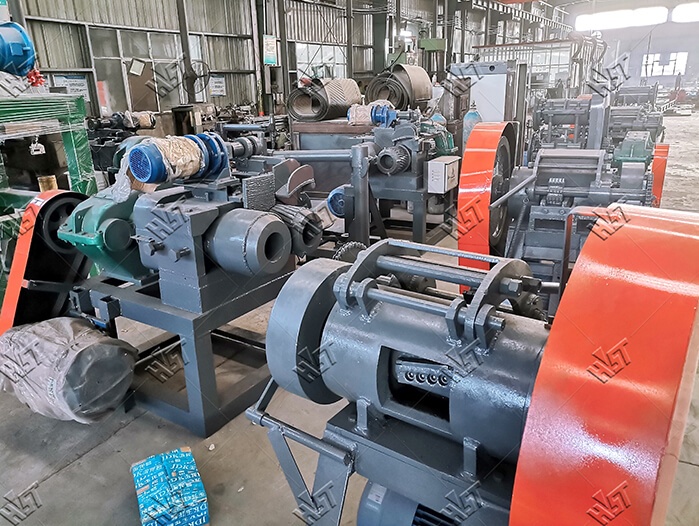

Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--crumb rubber machine--Main vibrating screen machine--Magnetic separator--Vice vibrating screen machine--Magnetic separator--Nylon fiber separator--Rubber powder

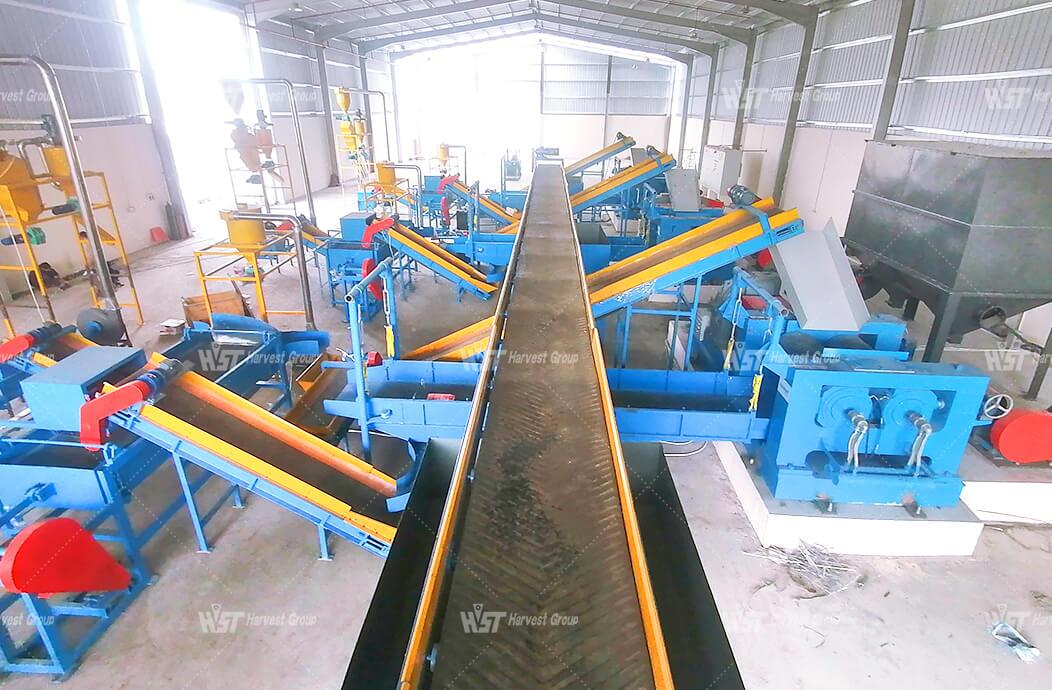

Fully automatic xkp tire recycling machine
Tire Cutting Machine(Tire debeader)--(Tire cutter)--Tire shredder--Rubber crusher machine--Main vibrating screen machine--Magnetic separator--Vice vibrating screen machine--Magnetic separator--Nylon fiber separator--Rubber powder

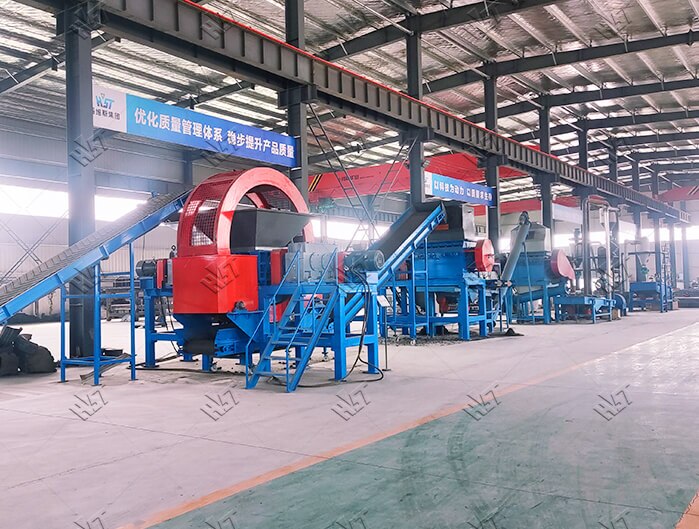

four shaft shredder
Removable blades in various sizes

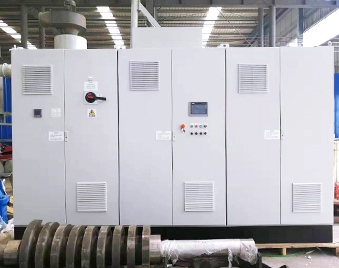

Fully automatic PLC control
industrial shredding machine
| Model | Drum diameter | Drum length | Front roll linear | Roll speed ratio | Max roller spacing | Motor power | Remarks |
| XKP350 | 350mm | 500mm | 26.2m/min | 1:2.5 | 8mm | 30kw | Antifriction bearing |
| XKP400 | 400mm | 600mm | 34.5m/min | 1:2.5 | 8mm | 45kw | Antifriction bearing |
| XKP450 | 450mm | 760mm | 38m/min | 1:2.5 | 8mm | 55kw | Antifriction bearing |
| XKP560 | 560mm | 800mm | 38.6m/min | 1:2.5 | 8mm | 90kw | Antifriction bearing |
| XKP610 | 610mm | 1000mm | 42.5m/.min | 1:2.5 | 8mm | 132kw | Antifriction bearing |
| XKP680 | 680mm | 1000mm | 48.5m/min | 1:2.5 | 8mm | 250kw | Antifriction bearing |
| XKP710 | 710mm | 1100mm | 48.5m/min | 1:2.5 | 8mm | 280kw | Antifriction bearing |
| XKP810 | 810mm | 1100mm | 48.5m/min | 1:2.5 | 8mm | 315kw | Antifriction bearing |
