The metal baler machine can extrude various metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disassembled car shells, waste oil barrels and other metal raw materials into cuboids or cylinders, which facilitates transportation or storage, improves production efficiency, saves manpower, and reduces transportation costs.
1.All types adopt hydraulic driving system, manual or PLC automatic operation.
2.Discharging methods: Turn-out type, Forward-out type, Push-out type
3.Installation without foot screws, diesel engine can be available if there is no power.
4.Press force range from 63 tons to 600 tons, production efficiency from 4 tons -40 tons each shift. 5.Press box size and bale size could be designed and made according to the customers' requirements.

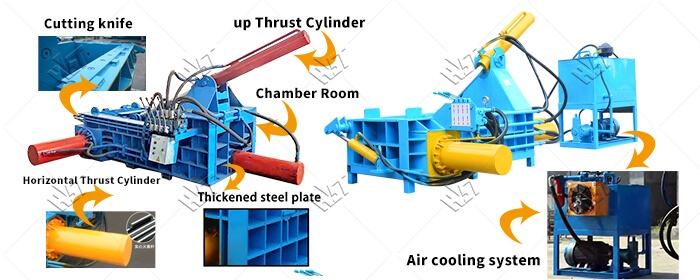

They are mainly composed of a frame, a hydraulic cylinder, a hydraulic power system, an electrical system and other components.
This equipment is mainly used for cutting all kinds of low-carbon light-weight production and domestic scrap steel, Scrap automobile shells, Light metal structures made of steel.Materials are cut into ideal sizes for Furnace feeding in steel mill. Non-ferrous metal smelting industry .it is an Ideal equipment for the precision casting industry and raw material manufacturers.
|
Pressure(T) |
Bin Size(mm) |
Package Size(mm) |
Package Weight(kg) |
Power(kw) |
|
100 |
1100*800*400 |
200*200*450 |
20-25 |
15 |
|
120 |
1200*850*450 |
250*250*500 |
25-30 |
15 |
|
125 |
1400*800*600 |
300*300*(300-600) |
30-50 |
18.5 |
|
160 |
1600*1200*700 |
400*400*(600-900) |
60-100 |
22 |
|
200/250 |
2000*1750*1000 |
500*500*(800-1200) |
250-400 |
30/37/22*2/30*2 |
|
315/400 |
3000*2500*1200 |
600*600*(900-1500) |
800-1200 |
37*2/45*2 |
|
400/500 |
3500*3000*1300 |
700*700*(900-1500) |
1200-1500 |
37*3/45*4 |
