HVST four shaft shredder machine is a low-speed, high-torque industrial shredder designed for controlled size reduction of bulky and mixed waste materials. It is widely used in tire recycling equipment and solid waste recycling systems.
HVST four shaft shredder is mainly composed of blade spindles, fixed knives, carrying box, box bracket, feeding system, hydraulic system, power system, and electrical control system. Equipped with an advanced PLC control system with start, stop, reverse, and overload protection, it ensures stable operation, high torque, low noise, and low maintenance cost.
It is suitable for shredding plastics, metals, tires, wood, and industrial waste. Especially in waste tire shredder machine systems, it plays an important role in secondary shredding and size control.
1. Low-speed, high-torque design improves shredding efficiency and handles both soft and hard materials.
2. Integrated screen system ensures controlled output size and uniform discharge.
3. Heavy-duty structure with high impact resistance for long service life.
4. PLC automatic control system with overload protection and auto-reverse function.
5. High-performance motors and reducers ensure stable power transmission.
6. Wear-resistant alloy blades with long service life and easy replacement.
Four shaft shredding system
Replaceable cutting blades
PLC automatic control system

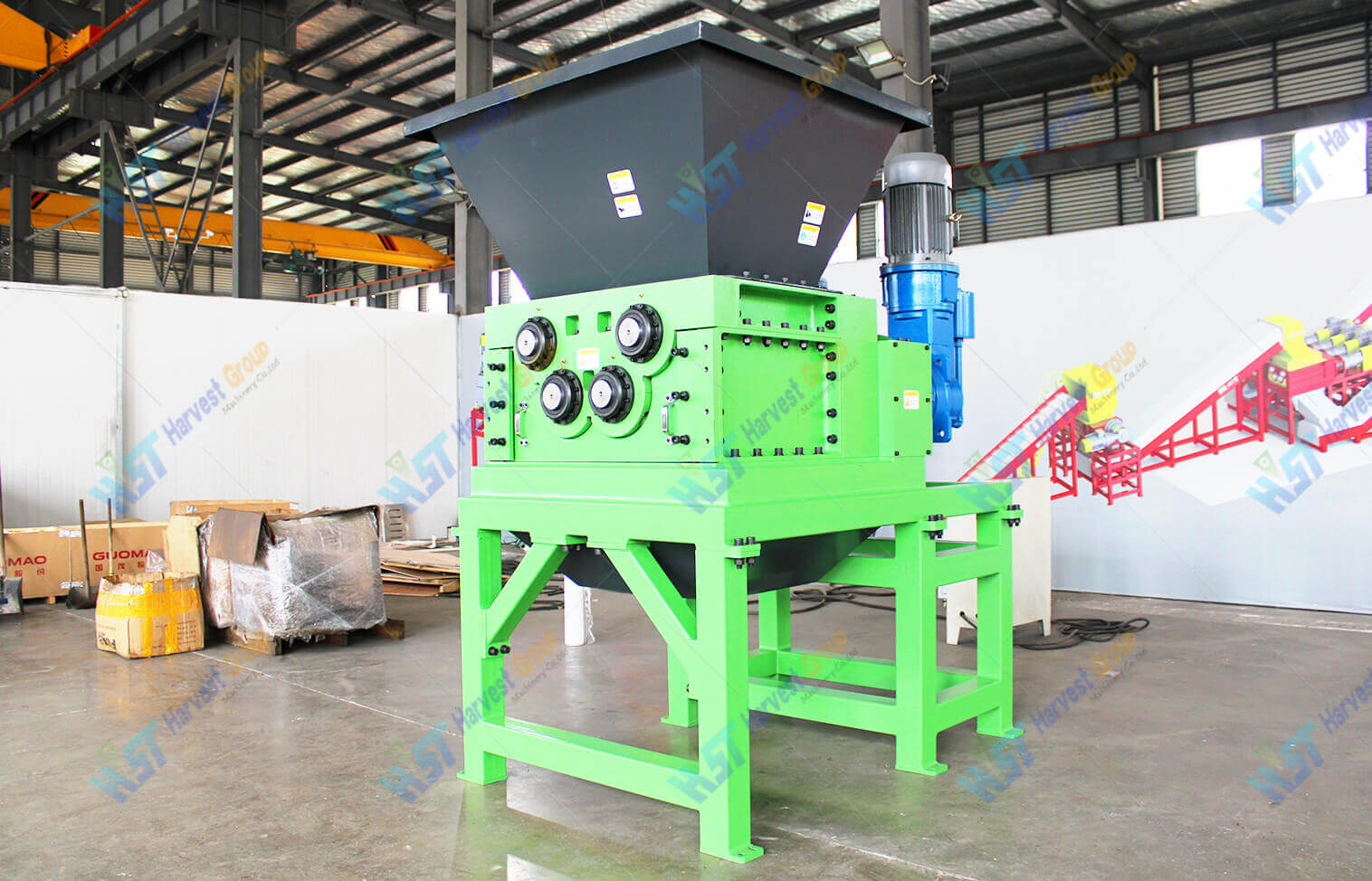

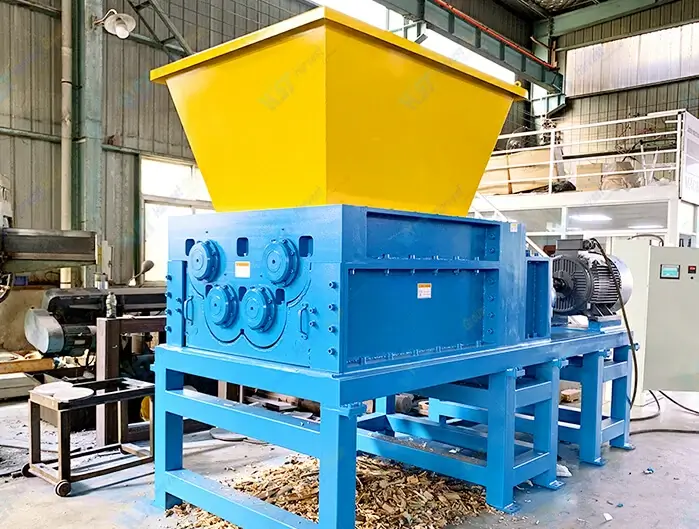

Industrial shredding machine
We provide customized shredding solutions based on different materials and applications. A complete recycling system may include:

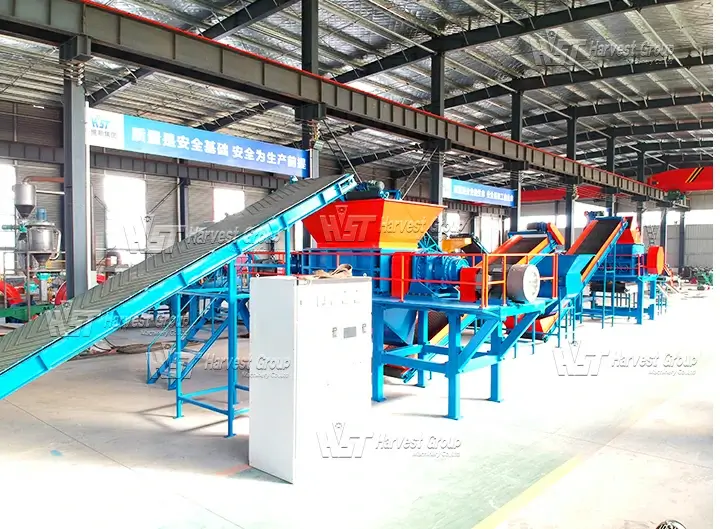

The four shaft shredder is often used in tire recycling plant systems for fine shredding and size control.
Please leave your requirements for a customized solution.
The industrial four shaft shredder is widely used in tire recycling, metal recycling, plastic waste processing, and solid waste management industries.
Waste Tires – pre-processing and secondary shredding
WEEE – cables and electronic waste
Scrap Cars – bumpers, tanks, sheet metal
Plastic Waste – pipes, films, containers
Wood Waste – pallets, branches
Paper & Cardboard
Scrap Metal – aluminum profiles, drums, cans
Bulk Waste – furniture, mattresses
Industrial Waste
Hazardous Waste
Composite Materials
HVST Machinery has 19 years of experience in recycling equipment manufacturing. Our industrial four shaft shredder has been widely used in waste tire, metal, and solid waste recycling projects across Europe, Africa, South America, and the Middle East.
The four shaft shredder machine uses four synchronized rotating shafts to tear, shear, and crush materials efficiently. The integrated screen system ensures that oversized materials are continuously recirculated until they reach the desired output size, providing uniform and controlled discharge.
This working principle makes the industrial four shaft shredder ideal for applications such as waste tire shredding, metal recycling, and solid waste processing.
Compared with double shaft shredders, the four shaft shredder machine provides more precise output size control through an integrated screen system. It is ideal for applications requiring uniform particle size, fine shredding, and secondary processing in recycling systems.
The following specifications of the four shaft shredder machine help you select the right model based on material type, capacity, and required output size.
The following specifications of the four shaft shredder machine help you select the right model based on material type, capacity, and required output size.
|
Model |
MS2400 |
MS1800 |
MS1600 |
MS1300 |
MS1200 |
|
Motor Brand |
Siemens |
Siemens |
Siemens |
Siemens |
Siemens |
|
Power (kW) |
2 × 110 kW |
2 × 75 kW |
2 × 55 kW |
2 × 45 kW |
2 × 37 kW |
|
Voltage |
Customized |
Customized |
Customized |
Customized |
Customized |
|
Cutting Chamber (L×W, mm) |
2400 × 1800 |
1804 × 1410 |
1504 × 1360 |
1304 × 920 |
1204 × 920 |
|
Blade Diameter (mm) |
1000 |
750 |
530 |
480 |
480 |
|
Machine Dimensions (L×W×H, mm) |
7300 × 2438 × 1046 |
5870 × 2450 × 3890 |
5260 × 2420 × 3890 |
5120 × 2010 × 3100 |
5010 × 1710 × 3100 |
|
Machine Weight (kg) |
60000 |
23000 |
20000 |
16000 |
14000 |
|
Hopper Opening (L×W×H, mm) |
3711 × 2438 × 1046 |
2790 × 2450 × 1100 |
2760 × 2410 × 1100 |
2050 × 1650 × 1000 |
1850 × 1650 × 900 |
|
Final Output Size (mm) |
110 – 300 |
75 – 150 |
60 – 100 |
60 – 100 |
50 – 100 |
The final output size of the four shaft shredder is controlled by the screen system. Oversized materials are automatically recirculated until they meet the required size, ensuring uniform and consistent output.
Note: Output size and capacity may vary depending on material type, blade configuration, and screen size.
The final output size of the four shaft shredder can be controlled by the screen system. Oversized materials are automatically recirculated for further shredding until they meet the required size, ensuring consistent and uniform output.
Note: Output size and capacity may vary depending on material type, blade configuration, and screen size.
A four shaft shredder machine can process plastics, metals, tires, wood, electronic waste, and various industrial solid waste materials.
The output size is typically between 50 mm and 300 mm and can be controlled by adjusting the screen size.
A four shaft shredder provides more precise size control with an integrated screen, while a double shaft shredder is mainly used for primary shredding.
Yes, the four shaft shredder is widely used in tire recycling systems for secondary shredding and size control.
