A rubber crumb production line is a complete tire recycling system that converts waste tires into uniform rubber granules through shredding, rasping, granulation, and steel/fiber separation. This page covers the process flow, main equipment, capacity range, and end-use applications.
The rubber crumb production line is designed to process waste tires into uniform 1–5mm rubber granules with steel and fiber removed. with steel and fiber removed. It integrates shredding, rasping, granulation, magnetic separation, and fiber separation for stable output quality.
Cuts whole tires into 50–150mm rubber chips for further processing.
Reduces chips into 10–30mm pieces and removes most steel wire.
Processes 10–30mm pieces into 1–5mm rubber crumbs.
Removes steel wires and nylon fibers to ensure high-purity crumb rubber output.
Ensures stable quality for flooring, molding, and turf infill applications.
Adjustable mesh screens allow flexible size control.
Achieved through reinforced frames, optimized rotor design, and industrial-grade bearings.
Engineered for long service life with minimal maintenance.
Can be upgraded to rubber powder lines (30–120 mesh).
Optimized shredding and granulation reduces power consumption.
Processes PCR, TBR, and large OTR tires with ease.
Rubber crumbs can be further processed into colored rubber mulch for landscaping and playground surfaces. If you need mulch-grade output, HVST can configure the line with additional washing, coloring, and packaging solutions.
Rubber crumbs are widely used in flooring, sports surfaces, and molded products due to their elasticity and durability.
Rubber Flooring Products
Sports & Athletic Surfaces
Molded & Pressed Products
Construction & Building Materials
Industrial & Energy Uses

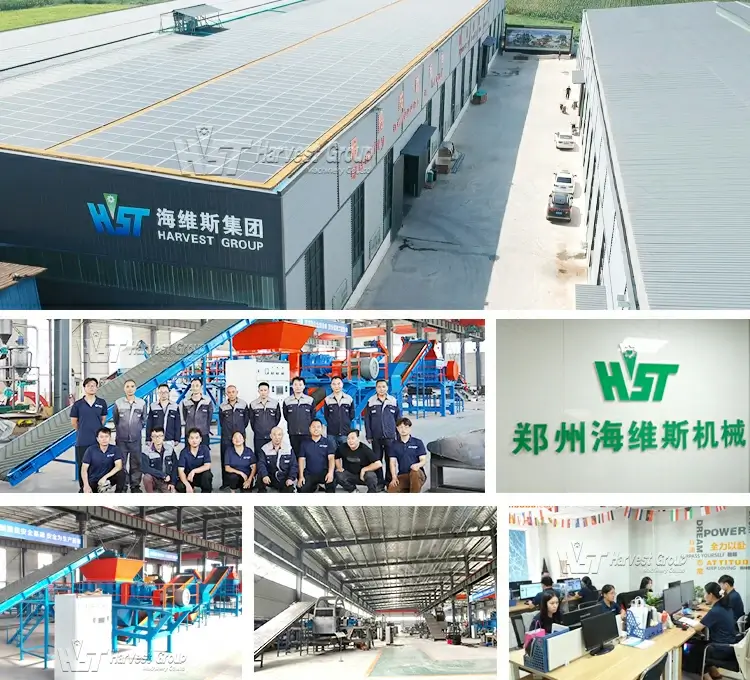

HVST GROUP is a trusted manufacturer of tire recycling equipment with:
20+ years of production experience
Complete turn-key plant design
Global installations in 100+ countries
CE, ISO, and safety certification
Custom solutions for cement plants & industrial fuel projects
We supply everything from engineering layout to machine production, installation, and operator training—ensuring fast ROI and long-term stable operation.
|
Configuration |
Capacity |
Output Size |
Purity |
Installed Power |
Operators |
Space Requirement |
Remarks |
|
Small-Scale Line |
500–800 kg/h |
1–5 mm |
≥99% |
200–260 kW |
2–3 |
≈20×12×6 m |
Suitable for pilot projects & small recycling plants |
|
Medium-Scale Line |
1000–1500 kg/h |
1–5 mm |
≥99% |
260–380 kW |
2–3 |
≈25×13×6 m |
Stable output for flooring & turf applications |
|
Large-Scale Line |
2000–3000 kg/h |
1–5 mm |
≥99% |
400–600 kW |
3–4 |
≈30×15×7 m |
Industrial-grade continuous operation |
|
Industrial Line |
4000 kg/h+ |
1–5 mm |
≥99% |
Customized |
Customized |
Customized |
Turn-key solution for large recycling plants |
Note: All configurations can be customized based on tire type, output size, and local power conditions.
Whether you’re entering the rubber flooring market or expanding your recycling plant, HVST provides high-quality, customizable crumb rubber lines designed for stable output and maximum profitability.
Contact us now for a customized quotation and complete project proposal.
This system is ideal for investors, recycling plant owners, and contractors looking to produce high-purity rubber granules at industrial scale. Based on your tire type, capacity target, and end-product application, HVST provides customized line configurations and full technical support.
